Sports Medicine
Gain a competitive advantage with dynamic imaging

The benefits of the SMART-C® in your athletic program

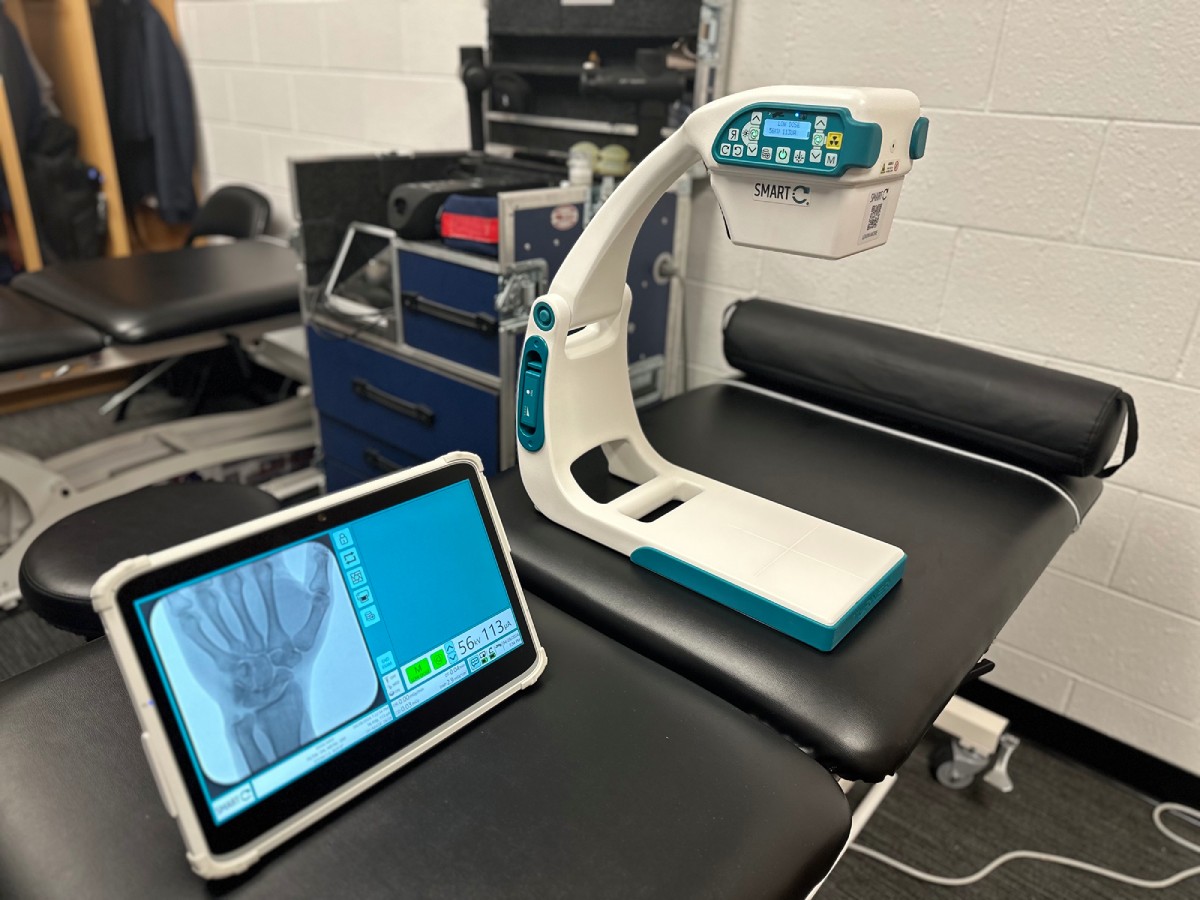

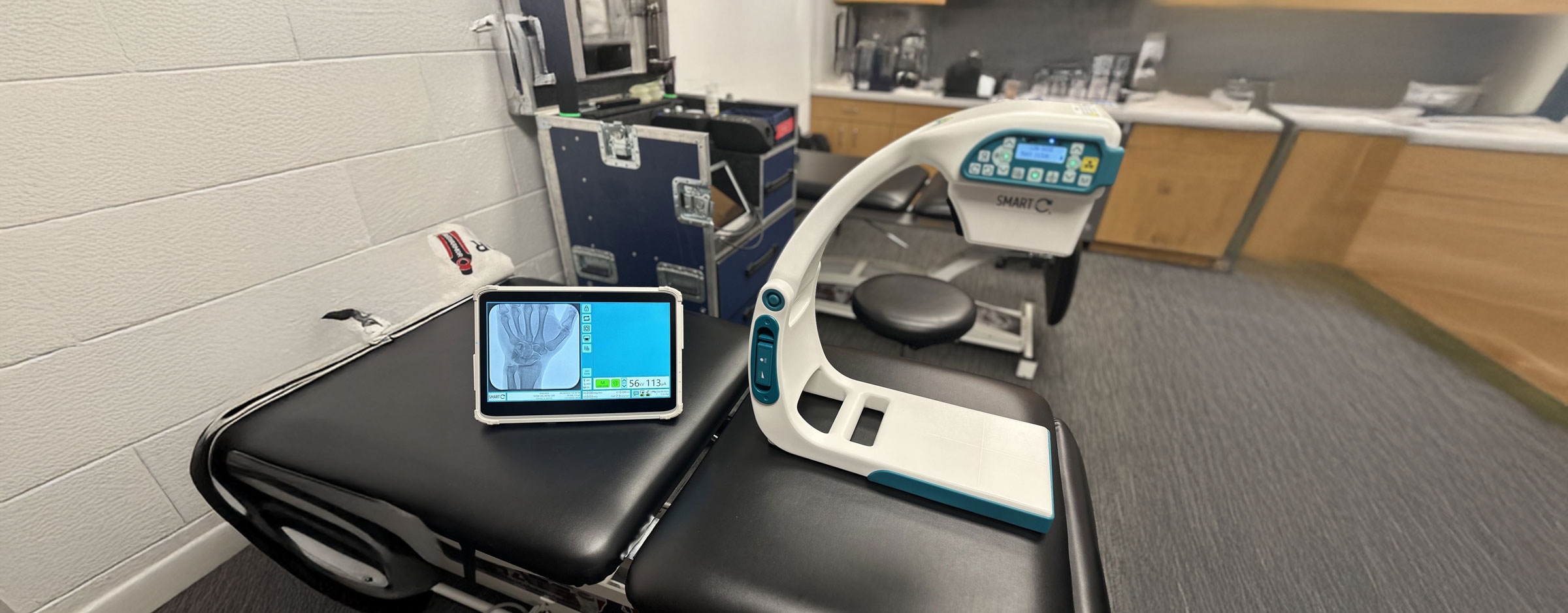

The SMART-C® enables trained providers to rapidly diagnose fractures and instabilities leading to quicker and more informed “Return to Play” decisions. Know with confidence whether it’s a simple sprain or more serious ligament tear or fracture by taking the guesswork out in a timely manner.

Features of the SMART-C®:

  • Light weight and wireless mini c-arm designed to be operated at the point-of-care
  • Fluoroscopic imaging provides more clinical information than radiographic x-ray, to make improved return to play decisions
  • SMART-C® with the rugged carrying case meets checked luggage requirements, allowing teams to travel with the system
Accessories

SMART-C® Support Stand

  • Counterbalanced C-arm articulation
  • Small storage footprint
  • Locking wheels
Height Adjustment Range   61 to 144 cm (24 to 57 in)
 Reach   116 cm (46 in)
 Horizontal Travel   218 cm (86 in)
 Orbital Arc Rotation   Counterbalanced 180°
 Wrist Spin Rotation   Unlimited
 Weight   75 kg (165 lb)

SMART-C® Monitor Cart

  • Battery operated monitor cart with no cords on the operating room floor
  • Battery charger for two SMART-C®batteries integral to the Monitor Stand
  • Independent monitor cart allows for a clear field of view positioning
 Monitor   27in diagonal 1920 x 1080 resolution Touch screen
 Live Image   30 x 30 cm (12 x 12 in)
 Printer  Thermal, medical grade
 Power   Battery operation (>8 hrs) or 115 VAC
 C-arm Battery Charge Bays   2
 Keyboard   Waterproof
 Weight    65 kg (143 lbs)

Download our latest orthopedic brochure to discover the advantages of SMART-C®

Imagine how you could use the SMART-C®

Learn more about the SMART-C®
